Parameters

Numbers and brightness contains several parameters that affect the analysis pipeline.

Background

The background value used for the numbers and brightness calculations. For more information, see calculations

Segment

Turn on automatic segmentation using cellpose 3

Cellpose settings

Settings passed to the cellpose model. For more information, see the cellpose documentation

Analysis

Automatically calculate average numbers and brightness values inside the cell (using cellpose segmentation). Will create a .csv file inside each outputfolder. When using batch processing, will create an additional .csv file in the parent folder containing results from all .tif files in the folder.

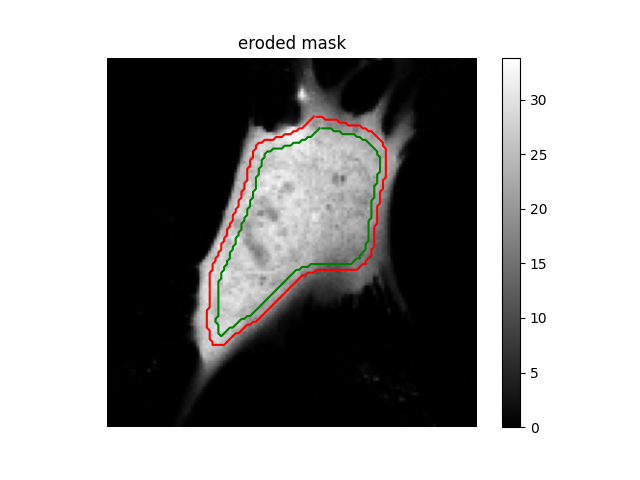

Erode

Remove a certain number of pixels from the edge of the segmentation. Intended to exclude edge artefacts caused by cell movement from the final results.

Bleach correction

Perform simple bleach correction using linear fitting. For more information, see bleach correction.

Use existing segmentation

Use existing segmentation. The algorithm will look for existing segmentations in the existing outputfolder. If not present, will perform cellpose segmentation instead. Can be used to manually insert/correct segmentations. For more information, see segmentation correction.

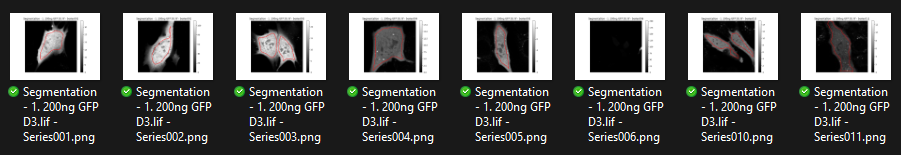

Create overview

Create overview folders containing segmentation and brightness results. Can be used to get a quick look at the analysis results of a batch.
